Square Drive Hydraulic Torque Wrenches
MXTA Series Al-Ti Alloy Square drive hydraulic torque wrench.
Maximum Torque at 700 bar:
48,666 Nm
Square Drive Range:
¾ - 2½ inch
Simplicity
• Includes handle to improve tool handling and safety
• 360° click-on, multi-position reaction arm
• Push button square drive release to quickly reverse the
square drive for tightening or loosening
• Fine tooth ratchet prevents tool “lock-on”
• Single 360° hydraulic swivel manifold, complete with
screw lock couplings, increases wrench and hose
manoeuvrability.
Design
• Compact, Al-Ti Alloy construction for a
small operating radius
• Robust design with minimal parts enables easy on-site
maintenance without special tools
• Lightweight, ergonomic design for easy handling and an
easy fit, even in applications where access is limited
• Optimised strength-to-weight ratio
Reliability
• All wrenches are nickel-plated for excellent corrosion
protection and improved durability in harsh environments.
Accuracy
• Constant torque output provides high accuracy across
the full stroke
• Accuracy of ± 3% can be achieved because the Uni-Body
construction reduces internal deflections.
Check the parameters and confirm the model No. of
the Al-Ti Alloy Square Drive Hydraulic Torque Wrench
| Model No. | 1MXTA | 3MXTA | 5MXTA | 8MXTA | 10MXTA | 20MXTA | 25MXTA | 35MXTA |
| Torque Value (N.M) | 183-1837 | 451-4512 | 752-7528 | 1078-10780 | 1551-15516 | 2666-26664 | 3472-34725 | 4866-48666 |
| Bolt Diameter | 16-36 | 22-48 | 27-56 | 30-64 | 36-72 | 42-90 | 48-100 | 64-115 |
| Nut A/F (mm) | 24-55 | 34-75 | 41-85 | 46-95 | 55-105 | 65-110 | 75-145 | 95-165 |
| L1 | 133.5 | 169 | 202.5 | 216 | 237.5 | 299.5 | 313 | 361.5 |
| L2 | 185.5 | 242 | 283.5 | 309 | 340.5 | 466.5 | 461 | 496.5 |
| H1 | 50 | 68 | 80 | 90 | 100 | 120 | 137 | 153 |
| H2 | 72 | 95 | 123 | 134 | 142 | 183 | 200 | 216 |
| H3 | 95.5 | 127 | 149 | 167 | 182 | 220 | 247 | 282 |
| H4 | 131 | 176.5 | 198.5 | 216.5 | 231.5 | 269.5 | 296.5 | 331.5 |
| R1 | 26 | 34 | 39 | 47 | 51 | 59 | 66 | 77 |
| R2 | 99 | 134 | 152 | 171 | 174 | 250.5 | 250.5 | 27 |
| Square Drive | 3/4" | 1-1/2" | 1-1/2" | 1-1/2" | 2-1/2" | 2-1/2" | 2-1/2" |
Square drive hydraulic torque wrenches for Gas pipeline bolt
preload

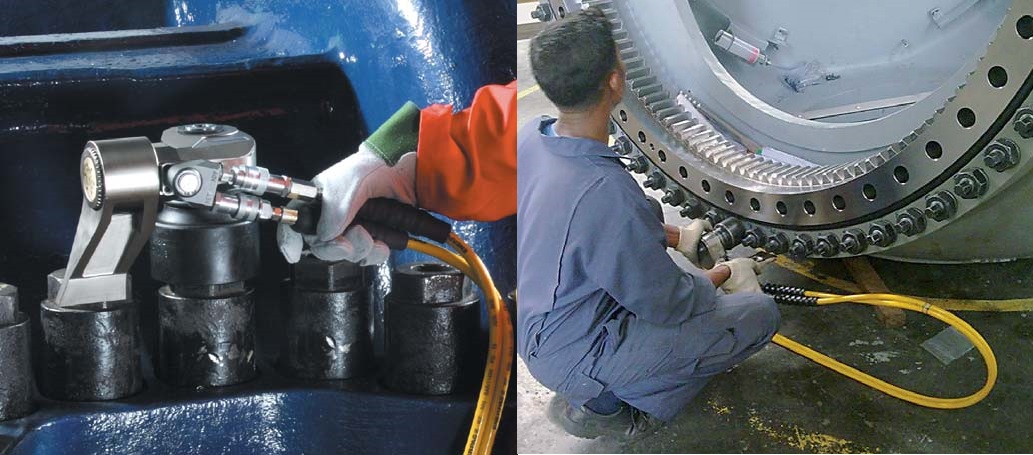

Square Drive Hydraulic Torque Wrench Applications
More information on detail, please feel free to contact me
|
|
