Single-Acting Hydraulic Nut Splitters
NC-Series Hydraulic Nut Splitters
Capacity:
49 - 882 kN (5-90 ton)
Bolt Range:
M6 - M48
Maximum Operating Pressure:
700 bar
| Bolt Range (mm) | Hexagon Nut Range (mm) | Capacity ton (kN) | Oil Capacity (cm3) | Model Number | Dimensions (mm) | (kg) | ||||||
| A | B | C | D | F | H | J | ||||||
| M6 - M12 | 10 - 19 | 5 (49) | 15 | NC-1319 | 40 | 170 | 7 | 19 | 28 | 48 | 21 | 12 |
| M12 - M16 | 19 - 24 | 10 (98) | 20 | NC-1924 * | 54 | 191 | 10 | 26 | 40 | 62 | 25 | 20 |
| M16 - M22 | 24 - 32 | 15 (147) | 60 | NC-2432 * | 64 | 222 | 13 | 29 | 51 | 72 | 33 | 30 |
| M22 - M27 | 32 - 41 | 20 (196) | 80 | NC-3241 * | 75 | 244 | 17 | 36 | 66 | 88 | 43 | 44 |
| M27 - M33 | 41 - 50 | 35 (343) | 155 | NC-4150 | 94 | 288 | 21 | 45 | 74 | 105 | 54 | 82 |
| M33 - M39 | 50 - 60 | 50 (490) | 240 | NC-5060 | 106 | 318 | 23 | 54 | 90 | 128 | 60 | 118 |
| M39 - M48 | 60 - 75 | 90 (882) | 492 | NC-6075 | 156 | 393 | 26 | 72 | 110 | 181 | 80 | 341 |
• Compact and ergonomic
design, easy to use
• Unique angled head design
• Single-acting, spring return cylinder
• Heavy duty chisels can be reground
• Nut Splitters include spare chisel, spare set screw and wrench
used to secure the chisel. A CR-400 coupler is standard.
• Applications include service trucks, piping industry, tank
cleaning, petrochemical, steel construction, mining, etc.

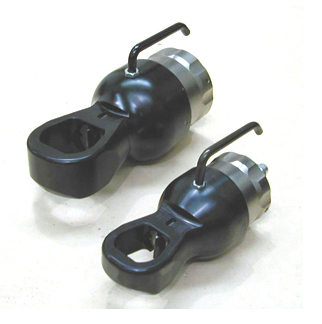

NS-Series Hydraulic Nut Splitters
Power and Precision
High Performance Nut Splitter
Capacity:
49 - 882 kN (5-90 ton)
Bolt Range:
M6 - M48
Maximum Operating Pressure:
700 bar

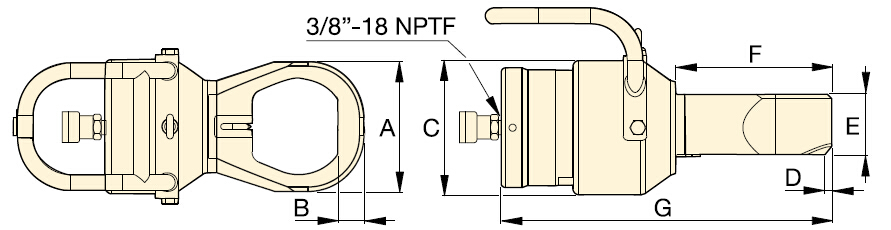

| Bolt Range (mm) | Hexagon Nut Range | Capacity ton (kN) | Oil Capacity (cm3) | Model No. Acting | Model No. Acting | Dimensions (mm) | (kg) | ||||||
| A | B | C | D | E | F | G | |||||||
| M45 - M52 | 70 - 80 | 103 (917) | 377 | NS-7080 | NS-7080D | 132 | 28 | 180 | 80 | 81 | 186 | 412 | 370 |
| M45 - M56 | 70 - 85 | 103 (917) | 377 | NS-7085 | NS-7085D | 145 | 30 | 180 | 80 | 81 | 196 | 422 | 370 |
| M45 - M64 | 70 - 95 | 103 (917) | 377 | NS-7095 | NS-7095D | 160 | 32 | 180 | 80 | 81 | 201 | 432 | 385 |
| M45 - M72 | 70 - 105 | 103 (917) | 377 | NS-70105 | NS-70105D | 174 | 35 | 180 | 90 | 81 | 209 | 443 | 395 |
| M76 - M80 | 110 - 115 | 193 (1711) | 819 | NS-110115 | NS-110115D | 189 | 36 | 234 | 37 | 111 | 234 | 472 | 690 |
| M76 - M90 | 110 - 130 | 193 (1711) | 819 | NS-110130 | NS-110130D | 219 | 41 | 234 | 25 | 111 | 242 | 493 | 715 |
• Specially designed to suit standard
ANSI B16.5 / BS1560 flanges
• Single-acting (spring return) or double-acting cylinder
• Tri-blade technology provides three cutting surfaces
on a single blade
• Interchangeable heads provide maximum nut
range flexibility
• Preset scale allows controlled blade extension,
which avoids damage to bolt threads
• Grip tape and handle included for more
secure manoeuvrability
• Nickel-plated cylinder body for excellent corrosion
protection and improved durability in
harsh environments
• Internal Pressure Relief Valve for overload protection
• CR-400 coupler and dustcap included on all models.
Easily removing rusty nuts during railroad
construction is just one of many application
examples for the Hydraulic Nut Splitter
More information on detail, please feel free to contact me
|
|
