| Brand Name : | UIrobot |
| Model Number : | UIM240 |
| Certification : | CE,ISO,ROHS |
| Price : | 40 - 120USD |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 500PCS/MONTH |
| Delivery Time : | 2 work days |

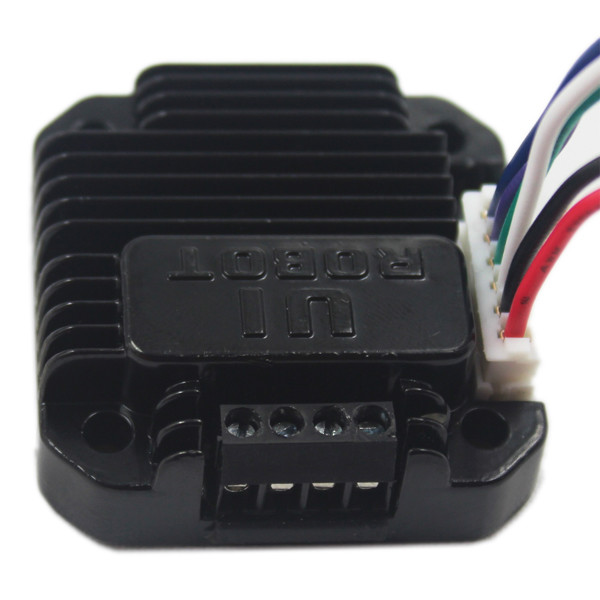

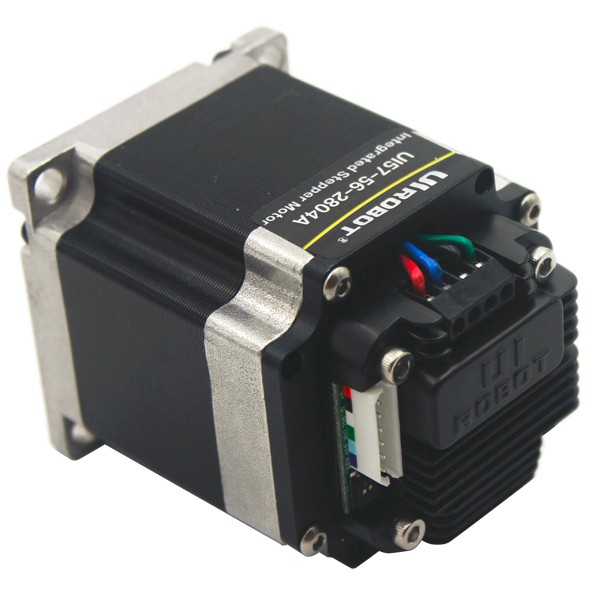

UIM240XX Miniature Stepper Motor Drivers are miniature, high performance stepper motor drivers. They can be mounted onto NEMA 17/23/34/42 series stepper motor seamlessly through corresponding flanges. The thickness of these driver is less than 15mm. The UIM24002 supplies 0-2A adjustabe phase current. Their mixed-decay current control reduces the back-EMF effect under high motor speed and improves the performance. Except that UIM24002 takes 10-35VDC input,UIM240XX series drivers work on 12-40VDC input The enclosure is made of die-cast aluminum which provides a rugged, durable protection and improves the heat dissipation.
● Miniature size 42.3mmx42.3mm x14.5mm
● Integral design to fit motors, work standalone as well
● Wide range input voltage 10-40VDC
● 0-2A/ 1.5-4A/ 3-8A adjustable phase current
● 1 to 16th micro stepping
● Automatic Current Reduction
● Dual full H-bridge with PWM constant current control
● enable/shutdown input for power saving
● Optical-isolated inputs
● die-cast aluminum enclosure
Supply Power Voltage | 12V ～ 40VDC(10V ～ 35VDC for UIM24002) |
Motor Output Current | Max 2A/4A/8A per phase(adjustable Through on-board trimmer) |
Drive Mode | PWM Constant current |
Stepping Resolution | Full step ,1/2 step,1/4 step, 1/8 step, and 1/16 step |
Communication(Ambient Temperature 25)
Parallel Communication | 3-wire interface: Pulse, Direction, Shutdown |
Micro Step Resolution | 1, 1/2, 1/4, 1/8, 1/16 set through on-board DIP switch 1 |
Environment Requirements
Cooling | Free air | |
Environment | Environment | Avoid dust,oil mist and corrosive gases |
Temperature | -40 ℃ ～+ 85 ℃ | |
Humidity | <80%RH,no condensation no frosting | |
vibration | 3G Max | |
In order to serve you quicker and better, when you order UIM240 series miniature intergrated stepper motor driver, please provide the product model number in following format.
Note:
1) Peak current is decided by maximum supply voltage (Table 0-1).
2) -H product (maximum supply voltage is 50V) is custom made,
please contact with the salesman before purchase.
3) Default control connector is T (screw terminal) if not selected.
4) -D product (Differential Terminal) is custom made, please
contact with the salesman before purchase.
Table 0-1 Correspondence between Max. Supply Voltage and Peak
Current
Current/Voltage | L (35V) | C (40V) | H (50V) |
2A | √ | √ | √ |
4A | × | √ | √ |
8A | × | √ | √ |
Examples:
UIM240L02T；UIM240C04P；UIM240C08P
Examples of Control Connector options:
UIM240 series --Pulse&Direction Stepper Driver on detail:
Miniature and function integrated design, dimension, 42.3mm x
42.3mm x 16.5 mm (LxWxH).
Video: https://youtu.be/jnODdTKFnw8
Mauals: https://www.dropbox.com/s/zrlw9pha3yya8gc/UIM240Manual%20V3.1.pdf?dl=0
|
|
