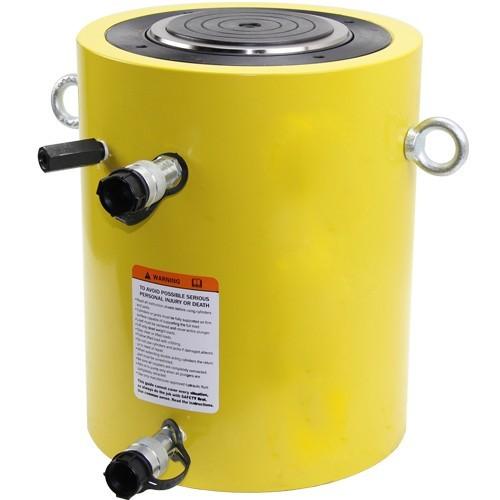

CLRG Series, High Tonnage Cylinders
Capacity: 50 - 1000 ton
Stroke: 50 - 300 mm
Maximum Operating Pressure: 700 bar
• Double-acting, for positive retraction
• Integral stop ring provides piston blow-out protection
• Safety valve in retract side of cylinder helps to prevent
damage in case of accidental over-pressurization
• Plunger wiper reduces contamination, extending
cylinder life
• CR-400 coupler and dust cap included on all models
• Baked enamel finish and plated pistons provide
superior corrosion resistance.
All CLRG cylinders are
equipped with bolt-on
removable grooved saddles.
Model Number |

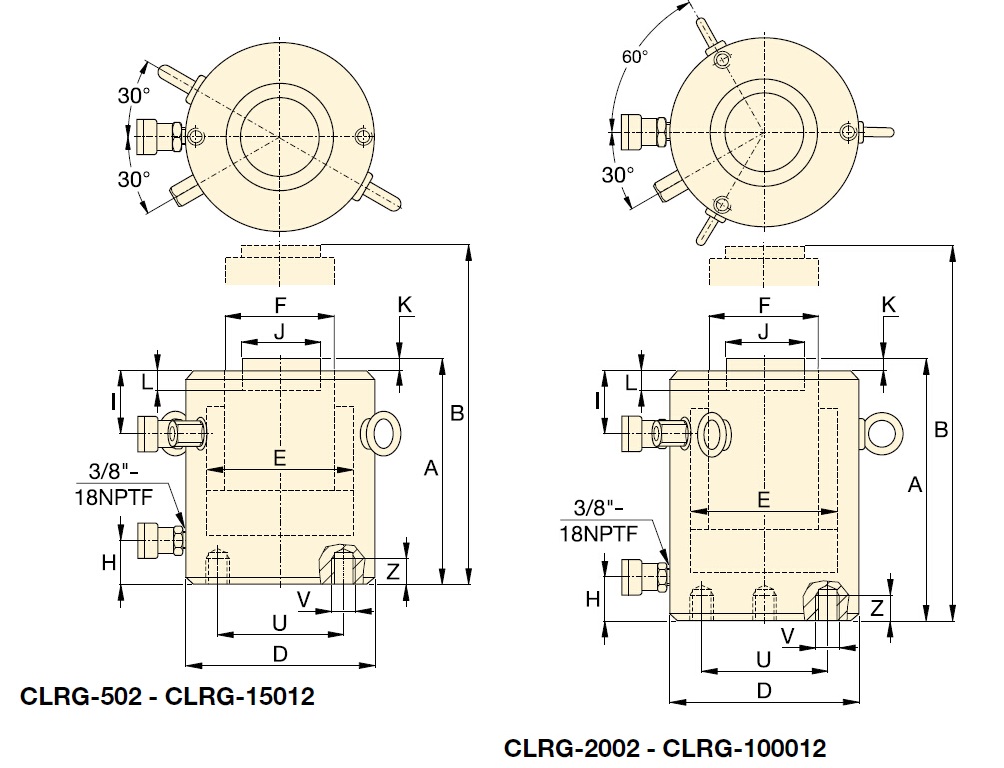

| Stroke | Cylinder Capacity | Effective Area | Oil | Coll. Height (A) | Ext.Height (B) | Outside (D) | Weight | |||
ton | mm | Push | Pull | Push | Pull | Push | Pull | mm | mm | mm | kg | |
CLRG-502 | 50 | 50 | 539 | 269 | 77,0 | 38,5 | 385 | 192 | 162 | 212 | 130 | 17 |
CLRG-504 | 100 | 539 | 269 | 77,0 | 38,5 | 770 | 385 | 212 | 312 | 130 | 20 | |
CLRG-506 | 150 | 539 | 269 | 77,0 | 38,5 | 1155 | 577 | 262 | 412 | 130 | 23 | |
CLRG-508 | 200 | 539 | 269 | 77,0 | 38,5 | 1540 | 770 | 312 | 512 | 130 | 27 | |
CLRG-5010 | 250 | 539 | 269 | 77,0 | 38,5 | 1924 | 962 | 362 | 612 | 130 | 31 | |
CLRG-5012 | 300 | 539 | 269 | 77,0 | 38,5 | 2309 | 1155 | 412 | 712 | 130 | 34 | |
CLRG-1002 | 100 | 50 | 929 | 433 | 132,7 | 61,9 | 664 | 309 | 179 | 229 | 165 | 29 |
CLRG-1004 | 100 | 929 | 433 | 132,7 | 61,9 | 1327 | 619 | 229 | 329 | 165 | 34 | |
CLRG-1006 | 150 | 929 | 433 | 132,7 | 61,9 | 1991 | 928 | 279 | 429 | 165 | 40 | |
CLRG-1008 | 200 | 929 | 433 | 132,7 | 61,9 | 2655 | 1237 | 329 | 529 | 165 | 46 | |
CLRG-10010 | 250 | 929 | 433 | 132,7 | 61,9 | 3318 | 1546 | 379 | 629 | 165 | 52 | |
CLRG-10012 | 300 | 929 | 433 | 132.7 | 61,9 | 3982 | 1856 | 429 | 729 | 165 | 58 | |
CLRG-1502 | 150 | 50 | 1390 | 675 | 198,6 | 96,5 | 993 | 482 | 196 | 246 | 205 | 39 |
CLRG-1504 | 100 | 1390 | 675 | 198,6 | 96,5 | 1986 | 965 | 246 | 346 | 205 | 52 | |
CLRG-1506 | 150 | 1390 | 675 | 198,6 | 96,5 | 2978 | 1447 | 296 | 446 | 205 | 65 | |
CLRG-1508 | 200 | 1390 | 675 | 198,6 | 96,5 | 3971 | 1930 | 346 | 546 | 205 | 78 | |
CLRG-15010 | 250 | 1390 | 675 | 198,6 | 96,5 | 4964 | 2412 | 396 | 646 | 205 | 92 | |
CLRG-15012 | 300 | 1390 | 675 | 198,6 | 96,5 | 5957 | 2895 | 446 | 746 | 205 | 105 | |
CLRG-2002 | 200 | 50 | 1861 | 889 | 265,9 | 127,0 | 1330 | 635 | 212 | 262 | 235 | 55 |
CLRG-2006 | 150 | 1861 | 889 | 265,9 | 127,0 | 3989 | 1905 | 312 | 462 | 235 | 91 | |
CLRG-20012 | 300 | 1861 | 889 | 265,9 | 127,0 | 7977 | 3809 | 462 | 762 | 235 | 146 | |
CLRG-2502 | 250 | 50 | 2565 | 1068 | 366,4 | 152,6 | 1832 | 763 | 235 | 285 | 275 | 89 |
CLRG-2506 | 150 | 2565 | 1068 | 366,4 | 152,6 | 5497 | 2289 | 335 | 485 | 275 | 136 | |
CLRG-25012 | 300 | 2565 | 1068 | 366,4 | 152,6 | 10993 | 4578 | 485 | 785 | 275 | 207 | |
CLRG-3002 | 300 | 50 | 3193 | 1060 | 456,2 | 151,4 | 2281 | 757 | 322 | 372 | 310 | 184 |
CLRG-3006 | 150 | 3193 | 1060 | 456,2 | 151,4 | 6843 | 2270 | 422 | 572 | 310 | 232 | |
CLRG-30012 | 300 | 3193 | 1060 | 456,2 | 151,4 | 13685 | 4541 | 572 | 872 | 310 | 303 | |
CLRG-4002 | 400 | 50 | 3919 | 1354 | 559,9 | 193,5 | 2800 | 967 | 374 | 424 | 350 | 270 |
CLRG-4006 | 150 | 3919 | 1354 | 559,9 | 193,5 | 8399 | 2902 | 474 | 624 | 350 | 330 | |
CLRG-40012 | 300 | 3919 | 1354 | 559,9 | 193,5 | 16797 | 5804 | 624 | 924 | 350 | 421 | |
CLRG-5002 | 500 | 50 | 5114 | 1733 | 730,6 | 247,6 | 3653 | 1238 | 419 | 469 | 400 | 401 |
CLRG-5006 | 150 | 5114 | 1733 | 730,6 | 247,6 | 10959 | 3713 | 519 | 669 | 400 | 480 | |
CLRG-50012 | 300 | 5114 | 1733 | 730,6 | 247,6 | 21918 | 7427 | 669 | 969 | 400 | 599 | |
CLRG-6002 | 600 | 50 | 5987 | 2068 | 855,3 | 295,4 | 4276 | 1477 | 429 | 479 | 430 | 474 |
CLRG-6006 | 150 | 5987 | 2068 | 855,3 | 295,4 | 12829 | 4431 | 529 | 679 | 430 | 565 | |
CLRG-60012 | 300 | 5987 | 2068 | 855,3 | 295,4 | 25659 | 8862 | 679 | 979 | 430 | 701 | |
CLRG-8002 | 800 | 50 | 8234 | 2709 | 1176,3 | 387,0 | 5881 | 1935 | 484 | 534 | 505 | 741 |
CLRG-8006 | 150 | 8234 | 2709 | 1176,3 | 387,0 | 17644 | 5806 | 584 | 734 | 505 | 868 | |
CLRG-80012 | 300 | 8234 | 2709 | 1176,3 | 387,0 | 35288 | 11611 | 734 | 1034 | 505 | 1058 | |
CLRG-10002 | 1000 | 50 | 10260 | 3792 | 1465,7 | 541,7 | 7329 | 2709 | 564 | 614 | 560 | 1062 |
CLRG-10006 | 150 | 10260 | 3792 | 1465,7 | 541,7 | 21986 | 8126 | 664 | 814 | 560 | 1213 | |
CLRG-100012 | 300 | 10260 | 3792 | 1465,7 | 541,7 | 43972 | 16252 | 814 | 1114 | 560 | 1439 | |
More information on detail, please feel free to contact me
|
|
