| Brand Name : | AdamPower |
| Model Number : | 34HS24 |
| Certification : | ISO,CE,ROHS,CCC |
| Price : | 10-20USD/PC |
| Payment Terms : | T/T, Western Union, MoneyGram, L/C |
| Supply Ability : | 100000PCS |
| Delivery Time : | 2-7 Days |
NEMA34 Stepping Motor, 1.8° step angle stepper motor,
2-Phase 60mm Stepper Motors
Electrical Specifications:
| Series | Step | Motor | Rated | Rated | Phase | Phase | Holding | Detent | Rotor | Lead | Motor | |
| Mode | Angleº | Length | voltage | Current | Resistance | Indutance | Torque(MIN) | Toruue(MAX) | Torque | Wire | Weight | |
| mm | v | A | Ω | Mh | N.cm | N.cm | g.cm2 | KG | ||||
| 34HS6828 | 1.8 | 66 | 3.92 | 2.8 | 1.4 | 3.9 | 340 | 5.5 | 1000 | 8 | 1.7 | |
| 34HS6840 | 1.8 | 66 | 2.4 | 4 | 0.6 | 1.6 | 220 | 5.5 | 850 | 8 | 2 | |
| 34HS6459 | 1.8 | 66 | 1.65 | 5.9 | 0.28 | 1.7 | 340 | 5.5 | 1000 | 4 | 1.7 | |
| 34HS7820 | 1.8 | 78 | 4.4 | 2 | 2.2 | 10 | 280 | 6.5 | 1400 | 8 | 2.3 | |
| 34HS7830 | 1.8 | 78 | 3 | 3 | 1 | 4.4 | 350 | 6.5 | 1400 | 8 | 2.3 | |
| 34HS7835 | 1.8 | 78 | 2.8 | 3.5 | 0.8 | 3 | 210 | 6.5 | 1400 | 8 | 1.7 | |
| 34HS9820 | 1.8 | 98 | 6.4 | 2 | 3.2 | 15 | 440 | 9.5 | 1700 | 8 | 3 | |
| 34HS9840 | 1.8 | 98 | 3.2 | 4 | 0.8 | 3.5 | 550 | 9.5 | 1700 | 8 | 3 | |
| 34HS1820 | 1.8 | 113 | 6 | 2 | 3 | 15 | 500 | 12.5 | 2900 | 8 | 3.5 | |
| 34HS1435 | 1.8 | 113 | 1.9 | 3.5 | 0.53 | 6.5 | 650 | 12.5 | 2700 | 4 | 3.6 | |
| 34HS1840 | 1.8 | 113 | 3.5 | 4 | 0.8 | 5.5 | 500 | 12.5 | 2900 | 8 | 3.5 | |
| 34HS1450 | 1.8 | 113 | 3.5 | 5 | 0.6 | 5 | 600 | 12.5 | 2900 | 4 | 3.5 | |
| 34HS1860 | 1.8 | 113 | 2.6 | 6 | 0.43 | 2.5 | 680 | 12.5 | 2700 | 8 | 3.6 | |
| 34HS2827 | 1.8 | 126 | 6.75 | 2.7 | 2.5 | 12.5 | 640 | 18.5 | 2200 | 8 | 1.8 | |
| 34HS2840 | 1.8 | 126 | 5.2 | 4 | 1.3 | 5.8 | 640 | 18.5 | 2200 | 8 | 1.8 | |
| 34HS2850 | 1.8 | 126 | 4.25 | 5 | 0.85 | 3.4 | 640 | 18.5 | 2200 | 8 | 1.8 | |
| 34HS5820 | 1.8 | 151 | 7.8 | 2 | 3.9 | 20 | 760 | 24.5 | 3600 | 8 | 5 | |
| 34HS5430 | 1.8 | 151 | 5.7 | 3 | 1.9 | 22 | 1050 | 24.5 | 3600 | 4 | 5 | |
| 34HS5842 | 1.8 | 151 | 5 | 4.2 | 1.2 | 9.2 | 630 | 24.5 | 4000 | 8 | 3.5 | |
| 34HS5860 | 1.8 | 151 | 2 | 6 | 0.3 | 5.2 | 720 | 24.5 | 4000 | 8 | 3.8 | |

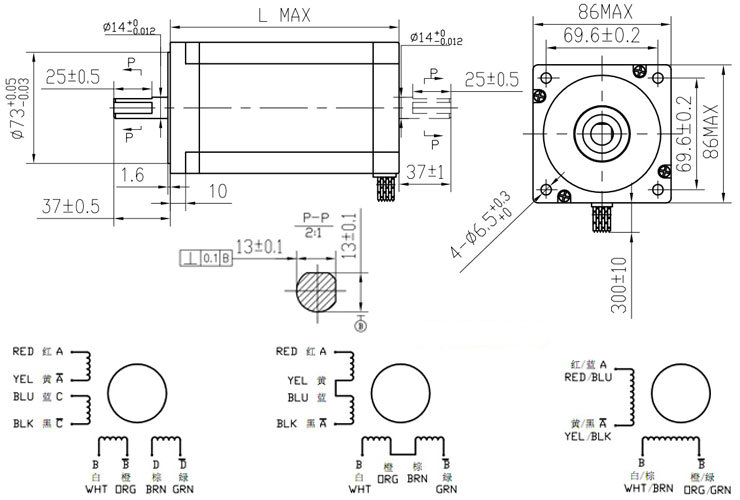

Mechanical Dimensions and Wiring Diagram:
Double Shaft Type stepper motor for CLOSED loop working.
Shaft Mode can be customized as the requirement.
Lead Wire Mode Options:
Note: The Stepping Motors Can be integrated with driver or controller as above.
|
|
