Adam Technolgoy, Since 1987
9 Years
| Ask Lasest Price | |
| Brand Name : | AdamPower |
| Model Number : | 24HS24 |
| Certification : | ISO,CE,ROHS,CCC |
| Price : | 10-20USD/PC |
| Payment Terms : | T/T, Western Union, MoneyGram, L/C |
| Supply Ability : | 100000PCS |
| Delivery Time : | 2-7 Days |
NEMA24 Stepping Motor, 1.8° step angle stepper motor,
2-Phase 60mm Stepper Motors
Electrical Specifications:
| Series | Step | Motor | Rated | Rated | Phase | Phase | Holding | Detent | Rotor | Lead | Motor |
| Mode | Angleº | Length | voltage | Current | Resistance | Indutance | Torque(MIN) | Toruue(MAX) | Torque | Wire | Weight |
| mm | v | A | Ω | Mh | N.cm | N.cm | g.cm2 | KG | |||
| 24HS4425 | 1.8 | 45 | 2.5 | 2.5 | 1 | 2.2 | 85 | 3.5 | 200 | 4 | 0.55 |
| 24HS5425 | 1.8 | 56 | 3.25 | 2.5 | 1.3 | 4.2 | 160 | 4 | 350 | 4 | 0.58 |
| 24HS5430 | 1.8 | 56 | 2.4 | 3 | 0.8 | 2.4 | 160 | 4 | 350 | 4 | 0.58 |
| 24HS5442 | 1.8 | 56 | 1.68 | 4.2 | 0.4 | 1.2 | 160 | 4 | 350 | 4 | 0.58 |
| 24HS6425 | 1.8 | 64 | 3.75 | 2.5 | 1.5 | 4.5 | 180 | 5 | 450 | 4 | 0.85 |
| 24HS6430 | 1.8 | 64 | 2.4 | 3 | 0.8 | 2.3 | 180 | 5 | 450 | 4 | 0.85 |
| 24HS6442 | 1.8 | 64 | 2.3 | 4.2 | 0.55 | 1.2 | 180 | 5 | 450 | 4 | 0.85 |
| 24HS7425 | 1.8 | 76 | 4.5 | 2.5 | 1.8 | 6.5 | 220 | 7 | 550 | 4 | 1.15 |
| 24HS7430 | 1.8 | 76 | 3 | 3 | 1 | 3.5 | 220 | 7 | 550 | 4 | 1.15 |
| 24HS7442 | 1.8 | 76 | 2.52 | 4.2 | 0.6 | 1.8 | 220 | 7.2 | 550 | 4 | 1.15 |
| 24HS9430 | 1.8 | 90 | 4.2 | 3 | 1.4 | 5.5 | 260 | 12 | 780 | 4 | 1.4 |
| 24HS9442 | 1.8 | 90 | 3.36 | 4.2 | 0.8 | 3 | 260 | 12 | 780 | 4 | 1.4 |
Mechanical Dimensions and Wiring Diagram:

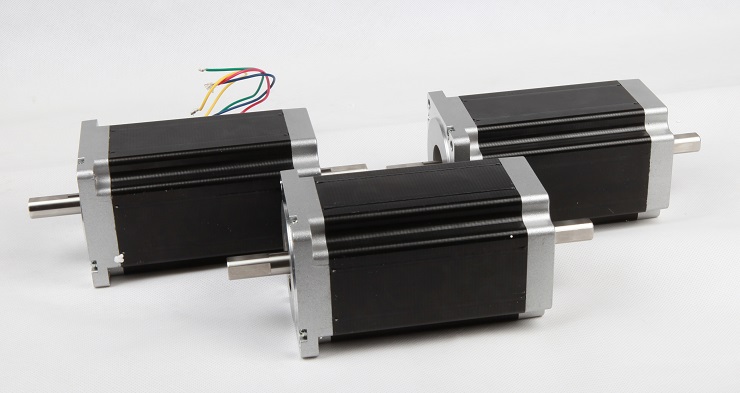

Double Shaft Type stepper motor for CLOSED loop working.
Shaft Mode can be customized as the requirement.
Lead Wire Mode Options:
Note: The Stepping Motors Can be integrated with driver or controller as above.
|
|
